LinearStretch

class astropy.visualization.LinearStretch(slope=1, intercept=0)

Bases: BaseStretch

A linear stretch with a slope and offset.

The stretch is given by:

\[y = slope * x + intercept\]

Parameters:

slopefloat, optional

The slope parameter used in the above formula. Default is 1.

interceptfloat, optional

The intercept parameter used in the above formula. Default is 0.

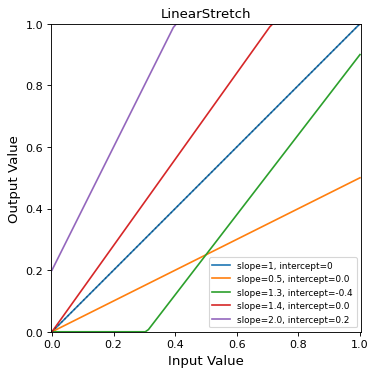

Examples

(Source code, png, svg, pdf)

Attributes Summary

inverse

A stretch object that performs the inverse operation.

Methods Summary

__call__(values[, clip, out])

Transform values using this stretch.

Attributes Documentation

inverse

A stretch object that performs the inverse operation.

Methods Documentation

__call__(values, clip=True, out=None)

Transform values using this stretch.

Parameters:

valuesarray_like

The input values, which should already be normalized to the [0:1] range.

clipbool, optional

If True (default), values outside the [0:1] range are clipped to the [0:1] range.

outndarray, optional

If specified, the output values will be placed in this array (typically used for in-place calculations).

Returns:

resultndarray

The transformed values.
