# Slicing Multidimensional Data¶

WCSAxes can either plot one or two dimensional data. If we have a dataset with higher dimensonality than the plot we want to make, we have to select which dimensions to use for the x or x and y axes of the plot. This example will show how to slice a FITS data cube and plot an image from it.

## Slicing the WCS object¶

Like the example introduced in Initializing axes with world coordinates, we will read in the data using astropy.io.fits and parse the WCS information. The original FITS file can be downloaded from here.

```
import matplotlib.pyplot as plt
from astropy.wcs import WCS
from astropy.io import fits
from astropy.utils.data import get_pkg_data_filename
filename = get_pkg_data_filename('l1448/l1448_13co.fits')
hdu = fits.open(filename)[0]
wcs = WCS(hdu.header)
image_data = hdu.data
```

This is a three-dimensional dataset which you can check by looking at the header information by:

```
>>> hdu.header
...
NAXIS = 3 /number of axes
CTYPE1 = 'RA---SFL' /
CTYPE2 = 'DEC--SFL' /
CTYPE3 = 'VELO-LSR' /
...
```

The header keyword ‘NAXIS’ gives the number of dimensions of the dataset. The keywords ‘CTYPE1’, ‘CTYPE2’ and ‘CTYPE3’ give the data type of these dimensions to be right ascension, declination and velocity respectively.

We then instantiate the `WCSAxes`

using the
`WCS`

object and select the slices we want to plot:

```
import matplotlib.pyplot as plt
ax = plt.subplot(projection=wcs, slices=(50, 'y', 'x'))
```

By setting `slices=(50, 'y', 'x')`

, we have chosen to plot the second
dimension on the y-axis and the third dimension on the x-axis. Even though we
are not plotting the all the dimensions, we have to specify which slices to
select for the dimensions that are not shown. In this example, we are not
plotting the first dimension so we have selected the slice 50 to display. You
can experiment with this by changing the selected slice and looking at how the
plotted image changes.

## Plotting the image¶

We then add the axes to the image and plot it using the method
`imshow()`

.

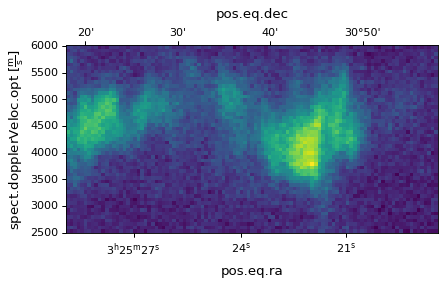

```
ax.coords[2].set_ticklabel(exclude_overlapping=True)

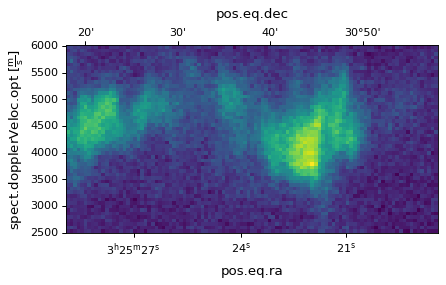

ax.imshow(image_data[:, :, 50].transpose())
```

Here, `image_data`

is an `ndarray`

object. In Numpy, the order
of the axes is reversed so the first dimension in the FITS file appears last,
the last dimension appears first and so on. Therefore the index passed to
`imshow()`

should be the same as passed to
`slices`

but in reversed order. We also need to
`transpose()`

`image_data`

as we have reversed the
dimensions plotted on the x and y axes in the slice.

If we don’t want to reverse the dimensions plotted, we can simply do:

```
import matplotlib.pyplot as plt
ax = plt.subplot(projection=wcs, slices=(50, 'x', 'y'))
ax.imshow(image_data[:, :, 50])
```

## Plotting one dimensional data¶

If we wanted to plot the spectral axes for one pixel we can do this by slicing down to one dimension.

```
import matplotlib.pyplot as plt
ax = plt.subplot(projection=wcs, slices=(50, 50, 'x'))
```

Here we have selected the 50 pixel in the first and second dimensions and will use the third dimension as our x axis.

We can now plot the spectral axis for this pixel. Note that we are plotting
against pixel coordinates in the call to `ax.plot`

, `WCSAxes`

will display
the world coordinates for us.

```

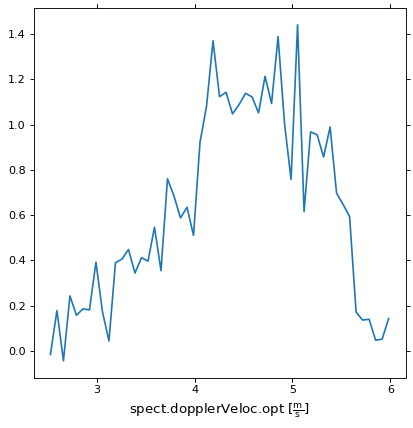

ax.plot(image_data[:, 50, 50])
```

As this is still a `WCSAxes`

plot, we can set the display units for the x-axis

```
ra, dec, vel = ax.coords
vel.set_format_unit(u.km/u.s)
```

If we wanted to plot a one dimensional plot along a spatial dimension, i.e.
intensity along a row in the image, `WCSAxes`

defaults to displaying both the
world coordinates for this plot. We can customise the colors and add grid lines
for each of the spatial axes.

```
import matplotlib.pyplot as plt
ax = plt.subplot(projection=wcs, slices=(50, 'x', 0))
```

```

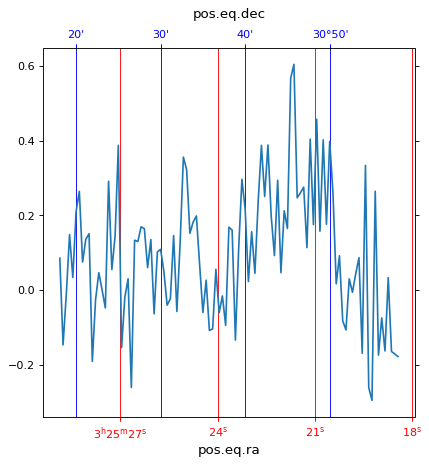

ax.plot(image_data[0, :, 50])
ra, dec, wave = ax.coords
ra.set_ticks(color="red")
ra.set_ticklabel(color="red")
ra.grid(color="red")
dec.set_ticks(color="blue")
dec.set_ticklabel(color="blue")
dec.grid(color="blue")
```
