Time series (astropy.timeseries)

Warning

astropy.timeseries is currently a work-in-progress (new in v3.2), and thus it is quite possible there will be API changes in later versions of Astropy. If you have specific ideas for how it might be improved, please let us know on the astropy-dev mailing list or at http://feedback.astropy.org .

Introduction

Many different areas of astrophysics have to deal with 1D time series data, either sampling a continuous variable at fixed times or counting some events binned into time windows. To address this need, the astropy.timeseries subpackage provides classes to represent and manipulate time series.

The time series classes presented below are QTable sub-classes that have special columns to represent times using the Time class. Therefore, much of the functionality described in Data Tables (astropy.table) applies here. But the main purpose of the new classes are to provide time series-specific functionality above and beyond QTable.

Getting Started

In this section, we take a quick look at how to read in a time series, access the data, and carry out some basic analysis. For more details about creating and using time series, see the full documentation in Using timeseries.

The simplest time series class is TimeSeries - it represents a time series as a collection of values at specific points in time. If you are interested in representing time series as measurements in discrete time bins, you will likely be interested in the BinnedTimeSeries sub-class which we show in Using timeseries).

To start off, we retrieve a FITS file containing a Kepler light curve for a source:

>>> from astropy.utils.data import get_pkg_data_filename
>>> filename = get_pkg_data_filename('timeseries/kplr010666592-2009131110544_slc.fits')

Note

The light curve provided here is hand-picked for example purposes. For more information about the Kepler FITS format, see the Kepler Data Validation Document and the Kepler Science Center Light Curve Files documentation. To get other Kepler light curves for science purposes using Python, see the astroquery affiliated package.

We can then use the TimeSeries class to read in this file:

>>> from astropy.timeseries import TimeSeries
>>> ts = TimeSeries.read(filename, format='kepler.fits')

Time series are specialized kinds of Table objects:

>>> ts
<TimeSeries length=14280>
          time             timecorr   ...   pos_corr1      pos_corr2
                              d       ...      pix            pix
         object            float32    ...    float32        float32
----------------------- ------------- ... -------------- --------------
2009-05-02T00:41:40.338  6.630610e-04 ...  1.5822421e-03 -1.4463664e-03
2009-05-02T00:42:39.188  6.630857e-04 ...  1.5743829e-03 -1.4540013e-03
2009-05-02T00:43:38.045  6.631103e-04 ...  1.5665225e-03 -1.4616371e-03
2009-05-02T00:44:36.894  6.631350e-04 ...  1.5586632e-03 -1.4692718e-03
2009-05-02T00:45:35.752  6.631597e-04 ...  1.5508028e-03 -1.4769078e-03
2009-05-02T00:46:34.601  6.631844e-04 ...  1.5429436e-03 -1.4845425e-03
2009-05-02T00:47:33.451  6.632091e-04 ...  1.5350844e-03 -1.4921773e-03
2009-05-02T00:48:32.291  6.632337e-04 ...  1.5272264e-03 -1.4998110e-03
2009-05-02T00:49:31.149  6.632584e-04 ...  1.5193661e-03 -1.5074468e-03
                    ...           ... ...            ...            ...
2009-05-11T17:58:22.526  1.014493e-03 ...  3.6121816e-03  3.1950327e-03
2009-05-11T17:59:21.376  1.014518e-03 ...  3.6102540e-03  3.1872767e-03
2009-05-11T18:00:20.225  1.014542e-03 ...  3.6083264e-03  3.1795206e-03
2009-05-11T18:01:19.065  1.014567e-03 ...  3.6063993e-03  3.1717657e-03
2009-05-11T18:02:17.923  1.014591e-03 ...  3.6044715e-03  3.1640085e-03
2009-05-11T18:03:16.772  1.014615e-03 ...  3.6025438e-03  3.1562524e-03
2009-05-11T18:04:15.630  1.014640e-03 ...  3.6006160e-03  3.1484952e-03
2009-05-11T18:05:14.479  1.014664e-03 ...  3.5986886e-03  3.1407392e-03
2009-05-11T18:06:13.328  1.014689e-03 ...  3.5967610e-03  3.1329831e-03
2009-05-11T18:07:12.186  1.014713e-03 ...  3.5948332e-03  3.1252259e-03

In the same way as for Table, the various columns and rows can be accessed and sliced using index notation:

>>> ts['sap_flux']
<Quantity [1027045.06, 1027184.44, 1027076.25, ..., 1025451.56, 1025468.5 ,
           1025930.9 ] electron / s>

>>> ts['time', 'sap_flux']
<TimeSeries length=14280>
          time             sap_flux
                         electron / s
         object            float32
----------------------- --------------
2009-05-02T00:41:40.338  1.0270451e+06
2009-05-02T00:42:39.188  1.0271844e+06
2009-05-02T00:43:38.045  1.0270762e+06
2009-05-02T00:44:36.894  1.0271414e+06
2009-05-02T00:45:35.752  1.0271569e+06
2009-05-02T00:46:34.601  1.0272296e+06
2009-05-02T00:47:33.451  1.0273199e+06
2009-05-02T00:48:32.291  1.0271497e+06
2009-05-02T00:49:31.149  1.0271755e+06
                    ...            ...
2009-05-11T17:58:22.526  1.0234769e+06
2009-05-11T17:59:21.376  1.0234574e+06
2009-05-11T18:00:20.225  1.0238128e+06
2009-05-11T18:01:19.065  1.0243234e+06
2009-05-11T18:02:17.923  1.0244257e+06
2009-05-11T18:03:16.772  1.0248654e+06
2009-05-11T18:04:15.630  1.0250156e+06
2009-05-11T18:05:14.479  1.0254516e+06
2009-05-11T18:06:13.328  1.0254685e+06
2009-05-11T18:07:12.186  1.0259309e+06

>>> ts[0:4]
<TimeSeries length=4>
          time             timecorr   ...   pos_corr1      pos_corr2
                              d       ...      pix            pix
         object            float32    ...    float32        float32
----------------------- ------------- ... -------------- --------------
2009-05-02T00:41:40.338  6.630610e-04 ...  1.5822421e-03 -1.4463664e-03
2009-05-02T00:42:39.188  6.630857e-04 ...  1.5743829e-03 -1.4540013e-03
2009-05-02T00:43:38.045  6.631103e-04 ...  1.5665225e-03 -1.4616371e-03
2009-05-02T00:44:36.894  6.631350e-04 ...  1.5586632e-03 -1.4692718e-03

As seen in the example above, TimeSeries objects have a time column, which is always the first column. This column can also be accessed using the .time attribute:

>>> ts.time
<Time object: scale='tdb' format='isot' value=['2009-05-02T00:41:40.338' '2009-05-02T00:42:39.188'
  '2009-05-02T00:43:38.045' ... '2009-05-11T18:05:14.479'
  '2009-05-11T18:06:13.328' '2009-05-11T18:07:12.186']>

and is always a Time object (see Times and Dates), which therefore supports the ability to convert to different time scales and formats:

>>> ts.time.mjd
array([54953.0289391 , 54953.02962023, 54953.03030145, ...,
       54962.7536398 , 54962.75432093, 54962.75500215])

>>> ts.time.unix
array([1.24122483e+09, 1.24122489e+09, 1.24122495e+09, ...,
       1.24206505e+09, 1.24206511e+09, 1.24206517e+09])

We can also check what time scale the time is defined on:

>>> ts.time.scale
'tdb'

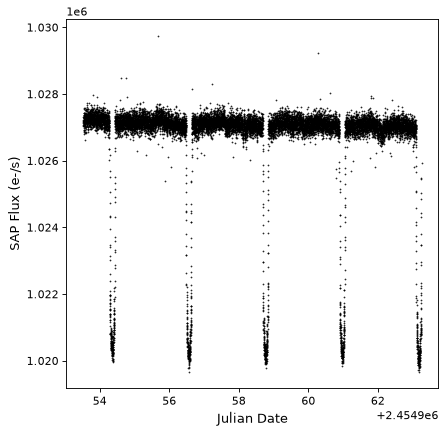

This is the Barycentric Dynamical Time scale (see Time and Dates (astropy.time) for more details). Let’s use what we’ve seen so far to make a plot

import matplotlib.pyplot as plt
plt.plot(ts.time.jd, ts['sap_flux'], 'k.', markersize=1)
plt.xlabel('Julian Date')
plt.ylabel('SAP Flux (e-/s)')

(png, svg, pdf)

../_images/index-22.png

It looks like there are a few transits! Let’s use the BoxLeastSquares class to estimate the period, using the ‘box least squares’ (BLS) algorithm:

>>> import numpy as np
>>> from astropy import units as u
>>> from astropy.timeseries import BoxLeastSquares
>>> periodogram = BoxLeastSquares.from_timeseries(ts, 'sap_flux')

To run the periodogram analysis, we use a box with a duration of 0.2 days:

>>> results = periodogram.autopower(0.2 * u.day)
>>> best = np.argmax(results.power)
>>> period = results.period[best]
>>> period
<Quantity 2.20551724 d>
>>> transit_time = results.transit_time[best]
>>> transit_time
<Time object: scale='tdb' format='isot' value=2009-05-02T20:51:16.338>

For more information on available periodogram algorithms, see Periodogram algorithms

We can now fold the time series using the period we’ve found above using the fold() method:

>>> ts_folded = ts.fold(period=period, epoch_time=transit_time)

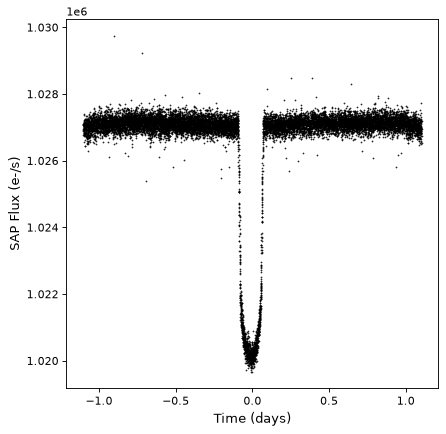

Let’s take a look at the folded time series:

plt.plot(ts_folded.time.jd, ts_folded['sap_flux'], 'k.', markersize=1)
plt.xlabel('Time (days)')
plt.ylabel('SAP Flux (e-/s)')

(png, svg, pdf)

../_images/index-6.png

Using the Astrostatistics Tools (astropy.stats) module, we can normalize the flux by sigma-clipping the data to determine the baseline flux:

>>> from astropy.stats import sigma_clipped_stats
>>> mean, median, stddev = sigma_clipped_stats(ts_folded['sap_flux'])
>>> ts_folded['sap_flux_norm'] = ts_folded['sap_flux'] / median

and we can downsample the time series by binning the points into bins of equal time - this returns a BinnedTimeSeries:

>>> from astropy.timeseries import aggregate_downsample
>>> ts_binned = aggregate_downsample(ts_folded, time_bin_size=0.03 * u.day)
>>> ts_binned
<BinnedTimeSeries length=74>
   time_bin_start     time_bin_size    ...   sap_flux_norm
                            s          ...
       object            float64       ...       float64
------------------- ------------------ ... ------------------
-1.1022116370482966             2592.0 ... 0.9998741745948792
-1.0722116370482966             2592.0 ... 0.9999074339866638
-1.0422116370482966             2592.0 ...  0.999972939491272
-1.0122116370482965             2592.0 ... 1.0000077486038208
-0.9822116370482965             2592.0 ... 0.9999921917915344
-0.9522116370482965             2592.0 ... 1.0000101327896118
-0.9222116370482966             2592.0 ... 1.0000121593475342
-0.8922116370482965             2592.0 ... 0.9999905228614807
-0.8622116370482965 2592.0000000000023 ... 1.0000263452529907
                ...                ... ...                ...
 0.8177883629517035 2591.9999999999977 ... 1.0000624656677246
 0.8477883629517035 2592.0000000000014 ... 1.0000633001327515
 0.8777883629517035  2592.000000000019 ... 1.0000433921813965
 0.9077883629517037 2591.9999999999814 ...  1.000024676322937
 0.9377883629517034   2592.00000000002 ... 1.0000224113464355
 0.9677883629517037  2591.999999999981 ... 1.0000698566436768
 0.9977883629517035             2592.0 ... 0.9999606013298035
 1.0277883629517035             2592.0 ... 0.9999635815620422
 1.0577883629517035             2592.0 ... 0.9999105930328369
 1.0877883629517036 2592.0000000000095 ... 0.9998687505722046

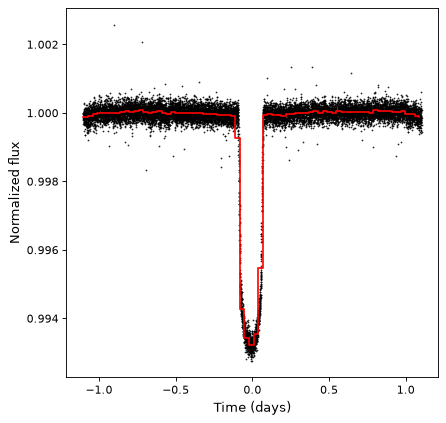

Let’s take a look at the final result:

plt.plot(ts_folded.time.jd, ts_folded['sap_flux_norm'], 'k.', markersize=1)
plt.plot(ts_binned.time_bin_start.jd, ts_binned['sap_flux_norm'], 'r-', drawstyle='steps-post')
plt.xlabel('Time (days)')
plt.ylabel('Normalized flux')

(png, svg, pdf)

../_images/index-10.png

To learn more about the capabilities in the astropy.timeseries module, you can find links to the full documentation in the next section.

Reference/API

astropy.timeseries Package

This subpackage contains classes and functions for work with time series.

Functions

aggregate_downsample(time_series, \*[, …])

Downsample a time series by binning values into bins with a fixed size, using a single function to combine the values in the bin.

autocheck_required_columns(cls)

This is a decorator that ensures that the table contains specific methods indicated by the _required_columns attribute.

Classes

BasePeriodogram(t, y[, dy])

BaseTimeSeries([data, masked, names, dtype, …])

BinnedTimeSeries([data, time_bin_start, …])

A class to represent binned time series data in tabular form.

BoxLeastSquares(t, y[, dy])

Compute the box least squares periodogram

BoxLeastSquaresResults(*args)

The results of a BoxLeastSquares search

LombScargle(t, y[, dy, fit_mean, …])

Compute the Lomb-Scargle Periodogram.

TimeSeries([data, time, time_start, …])

A class to represent time series data in tabular form.

Class Inheritance Diagram

Inheritance diagram of astropy.timeseries.periodograms.base.BasePeriodogram, astropy.timeseries.core.BaseTimeSeries, astropy.timeseries.binned.BinnedTimeSeries, astropy.timeseries.periodograms.bls.core.BoxLeastSquares, astropy.timeseries.periodograms.bls.core.BoxLeastSquaresResults, astropy.timeseries.periodograms.lombscargle.core.LombScargle, astropy.timeseries.sampled.TimeSeries

astropy.timeseries.io Package

Functions

kepler_fits_reader(filename)

This serves as the FITS reader for KEPLER or TESS files within astropy-timeseries.
